Motivation¶

This package provides an object-oriented structure for loading and analyzing AUTOMATUM DATA datasets. It is intended to enable the rapid use of the dataset in research and development. In addition, a web server-based visualization is provided to give an instant overview of the dataset.

**Download the the dataset from https://www.automatum-data.com**

Documentation of this package is available under: https://openautomatumdronedata.rtfd.io

A video with annotated objects can be found **here.**

Installation¶

The openautomatumdronedata-Utility is a standard PIP package which can be installed as any other PIP package with

pip install openautomatumdronedata

or depending on your machine

pip3 install openautomatumdronedata

In addition, the package can also be installed manually, e.g. by placing the sources in your project folder.

Upgrade¶

If you have openautomatumdronedata already installed you can get the latest version with

pip install --upgrade openautomatumdronedata

Change History¶

Since we update our dataset to keep track with the needs of the user. There are also updates in this library needed.

In the following table you find which pip package version is compatible with which version of the dataset. You can use pip to directly download a specifc version. The latest version of the dataset is always available on our homepage.

dataset version	open.automatum.data version	changes
v1.0	<= 0.2.1
v3.0	>= 0.4.0	Object to lane assigment, Object Relations are directly included in the data, Add TTC, TTH, Distance to left and right lane marking

Data Structure¶

The Automatum DATA datasets are strucktured in single recordings with a length of appx. 10 to 18 minutes each. Each recording was captured on a so called location.

That means there are usually several recordings on each location and the recordings share the common information of the location like the staticWorld (XODR) and the reference point.

Each recording itself comes in one folder with the following files:

dynamicWorld.json which contains the dynamic behavior of the objects such as cars, trucks, etc.
staticWorld.xodr which contains road geometry in the OpenDRIVE format.
recording_name.html which contains an overview of the recording with some basic metadata.

dynamicWorld.json¶

Variable	Description
UTM-Rferencepoint	Reference point in the world coordinate system in UTM-Format. This reference point is the center of the coordinate system for the given position. The points is given as a tuple of (x [m], y [m], letter, number)
WGS84-Coordinates	Referecne point in WGS82 format.
Recording name	Unique recording name: Streettype_Streetname_LocationName_UUID
UUID	Unique UUID of the recording
Release	Release version of the dataset.
Calculation version	Dict that shows all versions of the the pipeline used to process the recording.
Video Information	fps and count of containing frames of the recording
Contact an Licencing Information	Further contact and licence information of the given recording
Object data	The actual objects data which is described in this documentation.

Whereby, this Python package has the following objectives:

Easy access to the information contained in dynamicWorld.json and staticWorld.xodr.
Avoid effort by writing a parser for the provided data.
Visualize the data easily in a webbrowser

How to start coding¶

The entry point for accessing a dataset is to load a dataset using the DroneDataset class. You can copy all code snipets one by one and run the code. All snipets together can be found also on the hello_world.py provided with the sources.

from openautomatumdronedata.dataset import droneDataset
import os
import numpy as np

path_to_dataset_folder = os.path.abspath("datasets/hw-a9-stammhamm-015-39f0066a-28f0-4a68-b4e8-5d5024720c4e")
dataset = droneDataset(path_to_dataset_folder)

this command reads the dynamicWorld.json and staticWorld.xodr and translates the complete data in to an object-oriented structure. This allows all further data accesses to be made with the instance of the drone dataset class. Whereby, the drone dataset class holds the following two subclasses:

Dynamic World¶

The dynamic world holds all informations about dynamic objects (cars, trucks, vans) in the dataset and handles the access to objects over the recording time.

You can access the dynamic world by

dynWorld = dataset.dynWorld

The dynamic world provides you the following variables:

Variable	Description
UTM-Rferencepoint	Reference point in the world coordinate system in UTM-Format. This reference point is the center of the coordinate system for the given position. The points is given as a tuple of (x [m], y [m], letter, number)
UUID	Unique UUID of the recording
type	Type of the object as string
fps	fps of the recording
delta_t	Sample time of the recording. [s]
frame_count	Total number of frames of the recording.
maxTime	Total duration of the recording. [s]
DrivenDistanceInMeter	Total driven distance of all object in the recording. [m]
MedianDrivenDistanceInMeter	Median driven distance of the objects or track length. [m]

Example¶

dynWorld = dataset.dynWorld
print(dynWorld.UUID)
print(dynWorld.frame_count)
print(dynWorld.fps)
print(dynWorld.delta_t)
print(dynWorld.utm_referene_point)
print(dynWorld.maxTime)
print(dynWorld.DrivenDistanceInMeter)
print(dynWorld.MedianDrivenDistanceInMeter)
print(dynWorld.type)
#print(dynWorld.dynamicObjects) # Possible but not recommended. Use further discussed functions.

Dynamic objects¶

Objects are represented by a set of type specific class:

carObject
truckObject
vanObject
carWithTrailerObject
motorcycleObject

For evaluating the type of object, you can use the calls type or the type member variable which gives you a string.

All these classes inherited from the base class dynamicObject, which implements the following features. This means you can use all the following features for all object type specific classes.

Per Object the following information are available as scalar:

Variable	Description
UUID	Unique UUID of the object
length	Length of the object [m]
width	Width of the object [m]
delta_t	Time difference between two data points (equal at all objects and with in the `dynamicObject`)

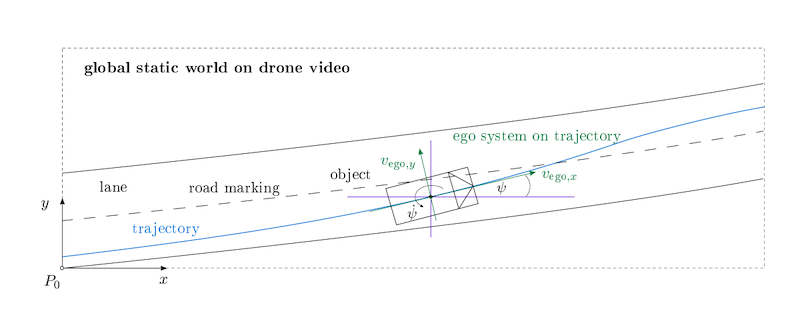

Per object the following information are available as vector over time:

Variable	Description
x_vec	x-Position of the assumed center of gravity of the object in the local coordinate system
y_vec	y-Position of the assumed center of gravity of the object in the local coordinate system
vx_vec	Velocity in x-direction in the vehicle coordinate system
vy_vec	Velocity in y-direction in the vehicle coordinate system
ax_vec	Acceleration of the object in x-direction in the vehicle coordinate system
ay_vec	Acceleration of the object in y-direction in the vehicle coordinate system
jerk_x_vec	Jerk of the object in X-direction in the vehicle coordinate system. Only if available in your dataset, if not the value is None
jerk_y_vec	Jerk of the object in Y-direction in the vehicle coordinate system. Only if available in your dataset, if not the value is None
time	Vector of the timestamp in the dataset recording for the mention values
psi_vec	Vector of orientation of objects.
curvature_vec	Driving Curvature of the object. Only if available in your dataset, if not the value is None
lane_id_vec	Vector of the `lane_id` on which the vehicle drives according to the static world described in the xodr, for details see chapter Object to lane assignment (OTLA)
road_id_vec	Vector of the `road_id` on which the vehicle drives according to the static world described in the xodr, for details see chapter Object to lane assignment (OTLA)
road_type_list	List of strings that describes the road type at every time step of the object. Only if available in your dataset, if not the value is None
lane_change_flag_vec	Vector of bool values, whereby True means that a lane change occurred. In newer Datasets a vector of Integers. Whereby, -1 means lane change to the left, +1 means lane change to the right and 0 means no lane change, for details see chapter Object to lane assignment (OTLA)
distance_left_lane_marking	Distance from the center of gravity of a object (defined by `x_vec`, `y_vec`) to the left lane marking, for details see chapter Distance to lane markings
distance_right_lane_marking	Distance from the center of gravity of a object (defined by `x_vec`, `y_vec`) to the right lane marking, for details see chapter Distance to lane markings
object_relation_dict_list	List of dicts, whereby every dict describes the object relation at the current time step, for details see chapter Object Relations
tth_dict_vec	List of dicts, whereby every dict describes the tth to the related objects at the current time step, for details see chapter TTC / TTH
ttc_dict_vec	List of dicts, whereby every dict describes the ttc to the related objects at the current time step, for details see chapter TTC / TTH
lat_dist_dict_vec	List of dicts, whereby every dict describes the lateral distance to the related objects at the current time step, for details see chapter Lateral and Longitudinal Position between Objects
long_dist_dict_vec	List of dicts, whereby every dict describes the longitudinal distance to the related objects at the current time step, for details see chapter Lateral and Longitudinal Position between Objects

Example¶

dynObjectList = dynWorld.get_list_of_dynamic_objects_for_specific_time(1.0)
dynObject = dynObjectList[-1]

print(dynObject.x_vec)
print(dynObject.y_vec)
print(dynObject.vx_vec)
print(dynObject.vy_vec)
print(dynObject.psi_vec)
print(dynObject.ax_vec)
print(dynObject.ay_vec)
print(dynObject.length)
print(dynObject.width)
print(dynObject.time)
print(dynObject.UUID)
print(dynObject.delta_t)

To keep the size of the dataset files as small as possible the data of the objects is only provided for the time intervale where the object is visitable in the video recording. Therefore, the first element in the time vector is the entry time and the last element the time of exit.

Dynamic objects utilities¶

To allow an easy access to objects, the following methods are implemented.

Total objects included¶

Returns the total number of included objects

len(dynWorld)

Get all objects at a specific time¶

Gives you a list of all objects which are included in the first second of the recording.

dynObjectList = dynWorld.get_list_of_dynamic_objects_for_specific_time(1.0)

Get specific timestamps of an object¶

print(dynObject.get_first_time()) # Returns the time the object occurs the first time
print(dynObject.get_last_time()) # Returns the time the object occurs the last time
print(dynObject.is_visible_at(10)) # Checks if the object is visible at the given time

Convert a time step to a vector index¶

To access the object vector based on a defined time step. You can use the function next_index_of_specific_time to convert a given time into the index of the data vectors at that given time, like

time_vec = np.arange(dynObject.get_first_time(),
                      dynObject.get_last_time(),
                      dynObject.delta_t)
# Print positions
x_vec = dynObject.x_vec
y_vec = dynObject.y_vec
for time in time_vec:
    idx = dynObject.get_object_relation_for_defined_time(time)
    print("At time %0.2f the vehicle is at position %0.2f, %0.2f" % (time, x_vec[idx], y_vec[idx]))

Object to lane assignment (OTLA)¶

The object-lane mapping is calculated for each object in each time step with the corresponding lane ID.

The x and y position of the object is used as a reference. Thus, the time stamp at which the lane ID changes is when that position passes over the lane marker.

The lane ID / road ID is defined by the static world of xodr, for more details see the static world chapter. Where all lane IDs with the same sign (e.g. positive) belong to one driving direction. Absolutely low IDs belong to a lane closer to the center of the road (between driving directions). Note that a lane ID does not have to start at 0, as there may also be an unnavigable lane near the center of the road.

To access the Lane ID use:

print(dynObject.lane_id_vec)
print(dynObject.road_id_vec)

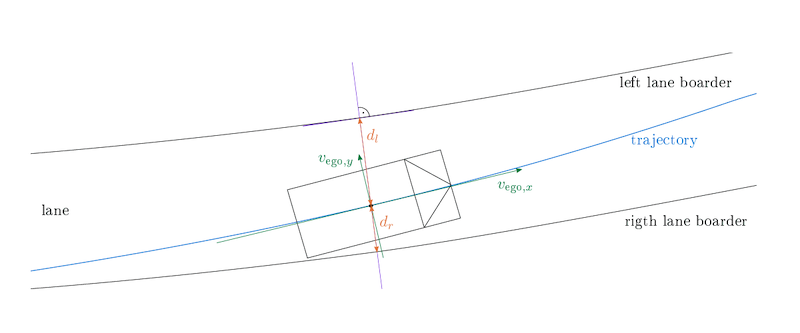

Distance to lane marking¶

For each object the current distances were calculated to the next left and right lane marking from ego view.

dl and dr are defined as the orthogonal distance from the center of gravity of the car to the next lane marking.

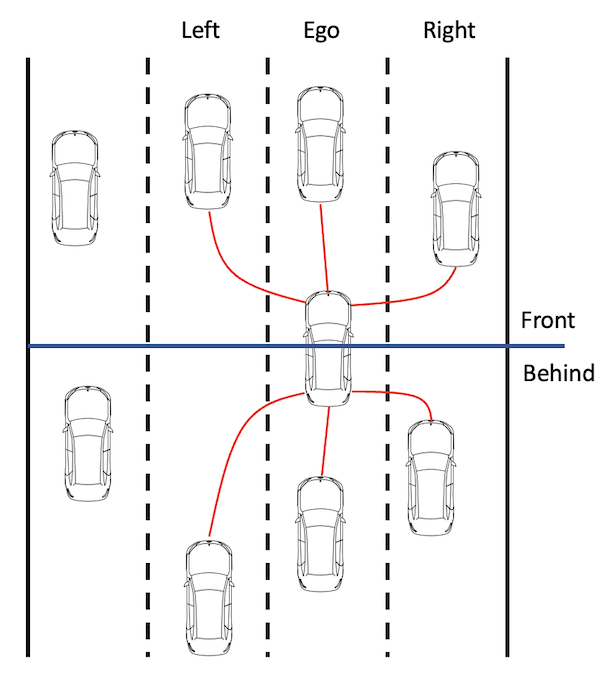

Object Relations¶

The object relation describing the relative position between object based on a view of one defined vehicle:

The object relation are defined as dict of <relation name>:<UUID of other object>. If an object has no relation to an other then the element is still in the dict, however, the value is None.

[
    { # Time step 0
        'front_ego': None,
        'behind_ego': '4bc73813-79bc-413c-87ec-e9048514079f',
        'front_left': None,
        'behind_left': None,
        'front_right': None,
        'behind_right': '0df4550c-a21b-4c38-bee3-e03ef4d59afc',
    },
    { #Time step 1
        'front_ego': None,
        'behind_ego': '4bc73813-79bc-413c-87ec-e9048514079f',
        'front_left': None,
        'behind_left': None,
        'front_right': None,
        'behind_right': '0df4550c-a21b-4c38-bee3-e03ef4d59afc',
    }
    ...
]

Therefore, the access is as followed

object_relation_dict = dynObject.object_relation_dict_list[0]
print(object_relation_dict["front_ego"])
print(object_relation_dict["behind_ego"])
print(object_relation_dict["front_left"])
print(object_relation_dict["behind_left"])
print(object_relation_dict["front_right"])
print(object_relation_dict["behind_right"])

Lateral and Longitudinal Position between Objects¶

Since the datasets consists also roads with a curvature, objects are not aligned to the coordinate system. Therefore, the lateral and longitudinal distance to the sounding objects in included in new datasets:

[
    { # Time step 0
        'front_ego': None,
        'behind_ego': '11.3453242342',
        'front_left': None,
        'behind_left': None,
        'front_right': None,
        'behind_right': '12.23107814',
    },
    { #Time step 1
        'front_ego': None,
        'behind_ego': '11.238790123',
        'front_left': None,
        'behind_left': None,
        'front_right': None,
        'behind_right': '12.239001724',
    }
    ...
]

If the data is not included, the lateral and longitudinal distance can be calculated by the function get_lat_and_long.

dynObject2 = dynObjectList[1]

long_distance, lat_distance = dynObject.get_lat_and_long(1.0, dynObject2)
print(long_distance, lat_distance)

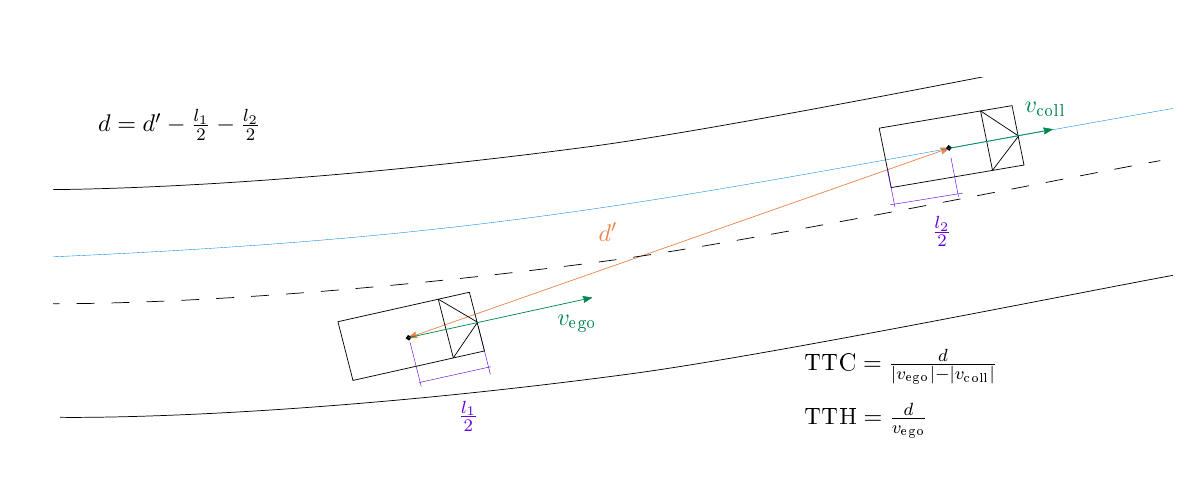

TTC and TTH¶

For each object the current TTC and TTH is calculated only to every in ``front`` driving object.

The distance d as base of all calculations is defined as the closest distance of both vehicle centers 'd. To compensate for the vehicle length, l/2 of each vehicle was substracted from 'd.

TTC¶

TTC is calculated as d / velocity difference.

If the front car is moving faster than the ego vehicle, a collision is impossible an the TTC is marked as -1.

TTH¶

TTH is calculated as d / velocity ego.

Static World¶

We implemented a basic parser for xodr with some additional functionality. This parser stores the relevant information in the so called Static World. As the Dynamic World the Static World can be accessed by the dataset class:

statWorld = dataset.statWorld

The Static World consist of a hierarchically structure of different classed to represents the xodr. Further information of xodr can be found **here.** We highly recommend to get a basic understanding of xodr if lane related information are used.

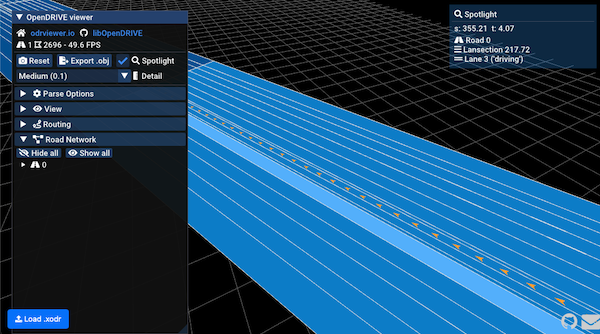

To get a fast and good view of an xodr we highly recommend the easy **OpenDriveViewer** to open and analyze the xodr files.

Visualization¶

This package provides an integrated visualization of the dataset via a web server realized by bokeh.

If you installed the package via pip simply starte the visualization by typing:

automatum_vis

To start the visualization manually execute the start_bokeh.py script form the package source.

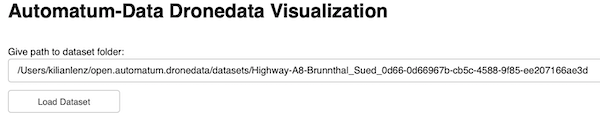

To open a dataset simple copy the absolute path of the dataset folder into the text filed on the top of the webpage. By clicking load the dataset will be loaded and visualized. Give it some seconds to load….

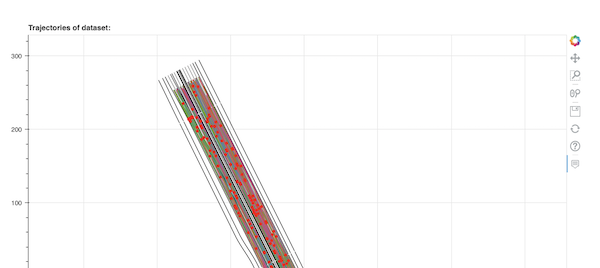

After loading a dataset you should get a comparable view:

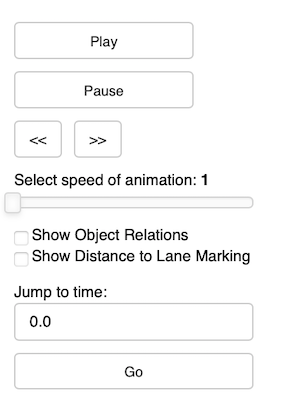

If you scroll down you find the panel where you can control a live view of the data:

With Play/Pause you start/stop the animation.
With the arrows bellow you can step a single frame.
The slider allows to change the playback speed.
The two check boxes allow to show additional data.
The “Jump to time” box allows it to jup directly to a picture of interest.

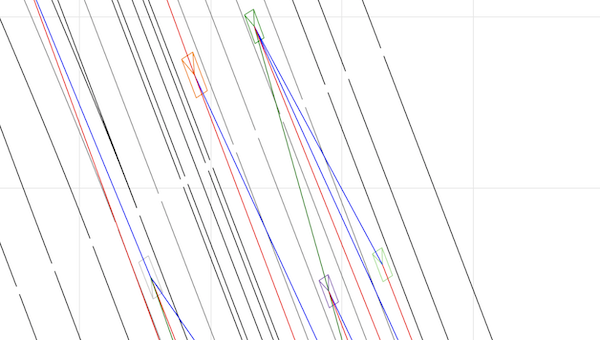

Show object relations prints all present relation to each object:

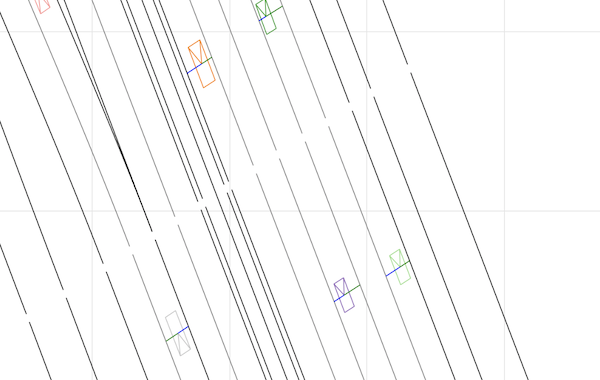

Show distance lane markings prints the current orthogonal distances of each car to the current lane:

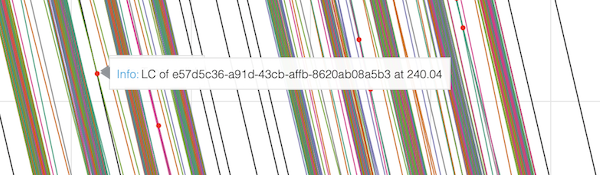

To get a lange change, please zoom into the overview picture and hover to a red dot which is indicating a lane change:

The info box is telling you the UUID of the object which is performing the lane change and also the time step when this is happening. With the time step you can use the “Jump” box to show this time step in the animation.

Complete Example¶

Here you find the complete example of all code snipets from above:

from openautomatumdronedata.dataset import droneDataset
import os
import numpy as np


path_to_dataset_folder = os.path.abspath("datasets/hw-a9-stammhamm-015-39f0066a-28f0-4a68-b4e8-5d5024720c4e")
dataset = droneDataset(path_to_dataset_folder)

dynWorld = dataset.dynWorld

print(dynWorld.UUID)
print(dynWorld.frame_count)
print(dynWorld.fps)
print(dynWorld.delta_t)
print(dynWorld.utm_referene_point)
print(dynWorld.maxTime)
print(dynWorld.DrivenDistanceInMeter)
print(dynWorld.MedianDrivenDistanceInMeter)
#print(dynWorld.dynamicObjects) # Possible but not recommended. Use further discussed functions.

dynObjectList = dynWorld.get_list_of_dynamic_objects_for_specific_time(1.0)
dynObject = dynObjectList[-1]

print(dynObject.x_vec)
print(dynObject.y_vec)
print(dynObject.vx_vec)
print(dynObject.vy_vec)
print(dynObject.psi_vec)
print(dynObject.ax_vec)
print(dynObject.ay_vec)
print(dynObject.length)
print(dynObject.width)
print(dynObject.time)
print(dynObject.UUID)
print(dynObject.delta_t)

len(dynWorld) # Returns the number of included object
dynObjectList = dynWorld.get_list_of_dynamic_objects_for_specific_time(1.0)

print(dynObject.get_first_time()) # Returns the time the object occurs the first time
print(dynObject.get_last_time()) # Returns the time the object occurs the last time
print(dynObject.is_visible_at(10)) # Checks if the object is visible at the given time

time_vec = np.arange(dynObject.get_first_time(),
                      dynObject.get_last_time(),
                      dynObject.delta_t)
# Print positions
x_vec = dynObject.x_vec
y_vec = dynObject.y_vec
for time in time_vec:
    idx = dynObject.next_index_of_specific_time(time)
    print("At time %0.2f the vehicle is at position %0.2f, %0.2f" % (time, x_vec[idx], y_vec[idx]))


print(dynObject.lane_id_vec)
print(dynObject.road_id_vec)

object_relation_dict = dynObject.object_relation_dict_list[0]
print(object_relation_dict["front_ego"])
print(object_relation_dict["behind_ego"])
print(object_relation_dict["front_left"])
print(object_relation_dict["behind_left"])
print(object_relation_dict["front_right"])
print(object_relation_dict["behind_right"])

dynObject2 = dynObjectList[1]

long_distance, lat_distance = dynObject.get_lat_and_long(1.0, dynObject2)
print(long_distance, lat_distance)

statWorld = dataset.statWorld

Disclamer¶

The implementation of xodr via the automatum_vis can show artefacts or road elements are displayed incorrectly. The xodr itself is generated using IPG’s CarMaker tool and is fully represented. Also not all road elements of the standard are implemented to be shown.
